Description

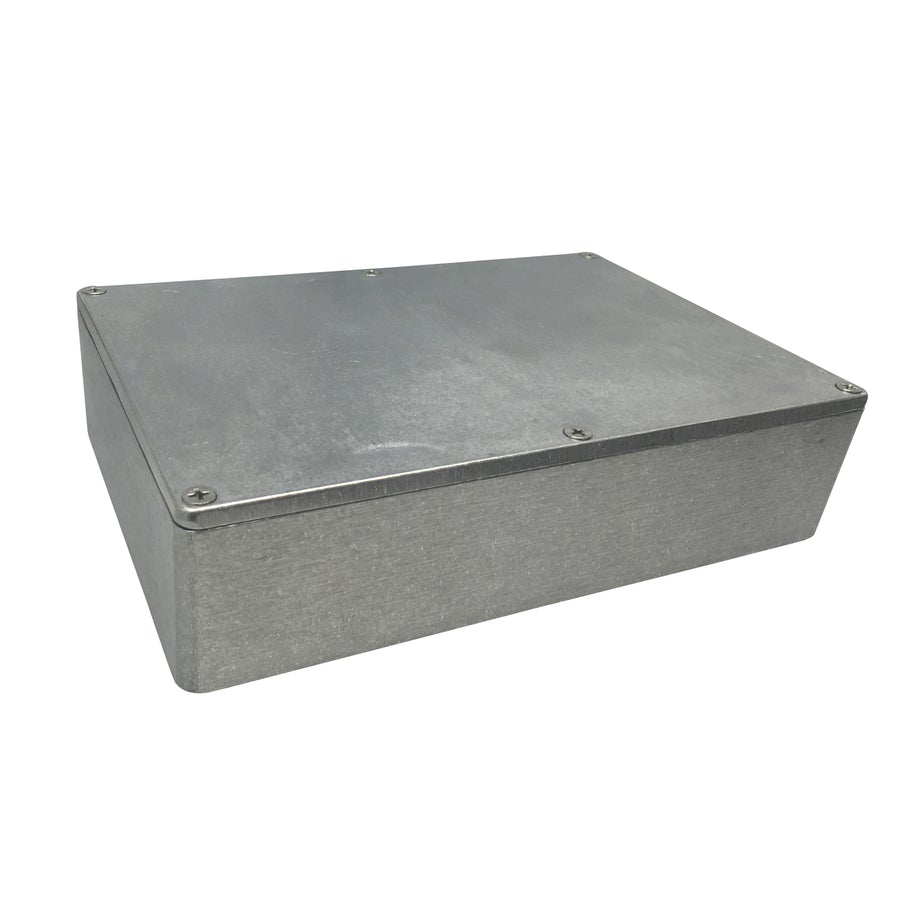

Sealed Diecast Aluminium Enclosure - 222 x 146 x 55mm
Ideal for housing sensitive electronic assemblies, pnumatic, hydraulic and electronic devices incommercial and industrial environments providing effective shielding of EMI and RFI
Features:
• Designed to IP65 of IEC529 anf NEMA 4 (dust and hoseproof)
• Wall mounting holes and lid fixing screws are outside the sealing area, thus preventing the ingress ofmoisture and dust
• The lid incorporates a recessed EPDM gasket
• Bosses on internal base for fixing PCB's horizontally or connection of earth grounding, terminals, etc
Internal guide slots for mounting PCB assemblies vertically
• Screw holes for mounting lid are roll threaded. Screws are captive and recessed
• Box and lid are made in Aluminium alloy ADC-10 to Japan Industrial Standard (JIS) in natural finish
• Finishes available on special orders are painted black and epoxy coated black
Enclosures and Boxes
Material
Aluminium
Lid Screws
6.0 pc
Ingress Protection Rating
Dust/Particle Ingress Protection
6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection
5 - Water jets
IP Rating
IP65
Product Dimensions
Width
222.0 mm
Height
55.0 mm
Depth
146.0 mm
Packaged Dimensions
Packaged Dimensions
23.4cm(Length) x 15.9cm(Width) x 6.0cm(Height)
